Part Files
- 3D CAD: STEP / STP / X_T
- 2D drawings: PDF / DWG / DXF
- Dimensions and engineering notes
- Units and drawing revisions
CNC MACHINING RFQ
Get a CNC Machining Quote
Upload your drawings and manufacturing requirements for engineering review and quotation.
- STEP / STP / X_T / PDF / DWG / DXF
- Prototype to Production
- NDA Supported
Send what you have — we can clarify missing details during review.
- 3/4/5-Axis
CNC - Quality
Inspection - Materials
Support - Prototype
to Production - Drawing
Confidentiality
Provide the Right Information Upfront
The more relevant project information you provide, the easier it is for our team to evaluate manufacturing scope and prepare an accurate quotation.
Critical Requirements
- Material and surface finish
- Key dimensions and tolerances
- Threads, GD&T and critical features
- Inspection or documentation requirements
Commercial Requirements
- Prototype or production quantity
- Target delivery requirements
- Required secondary processes
- Other project-specific instructions
Engineered for Precision.
Built for Confidence.

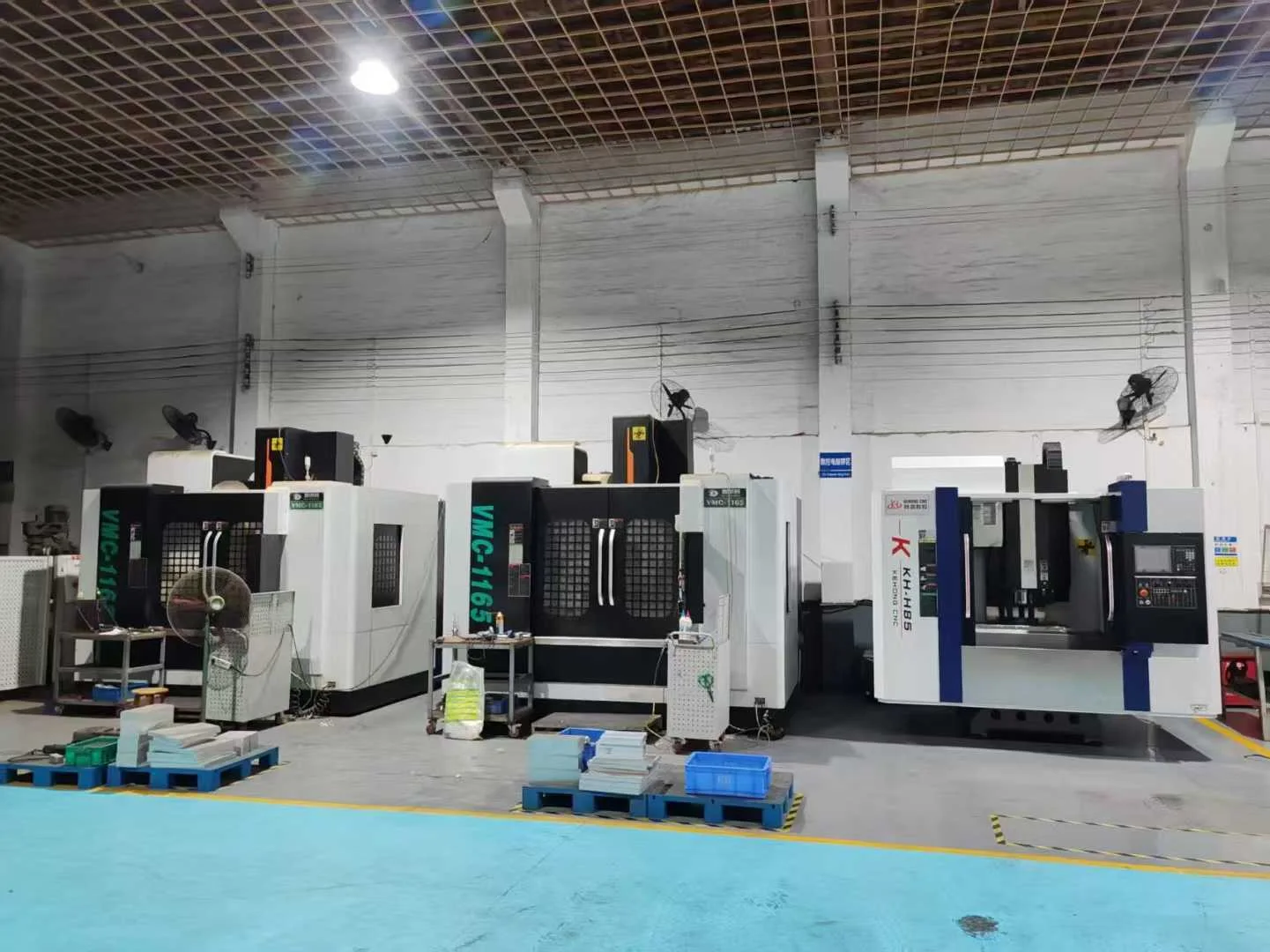

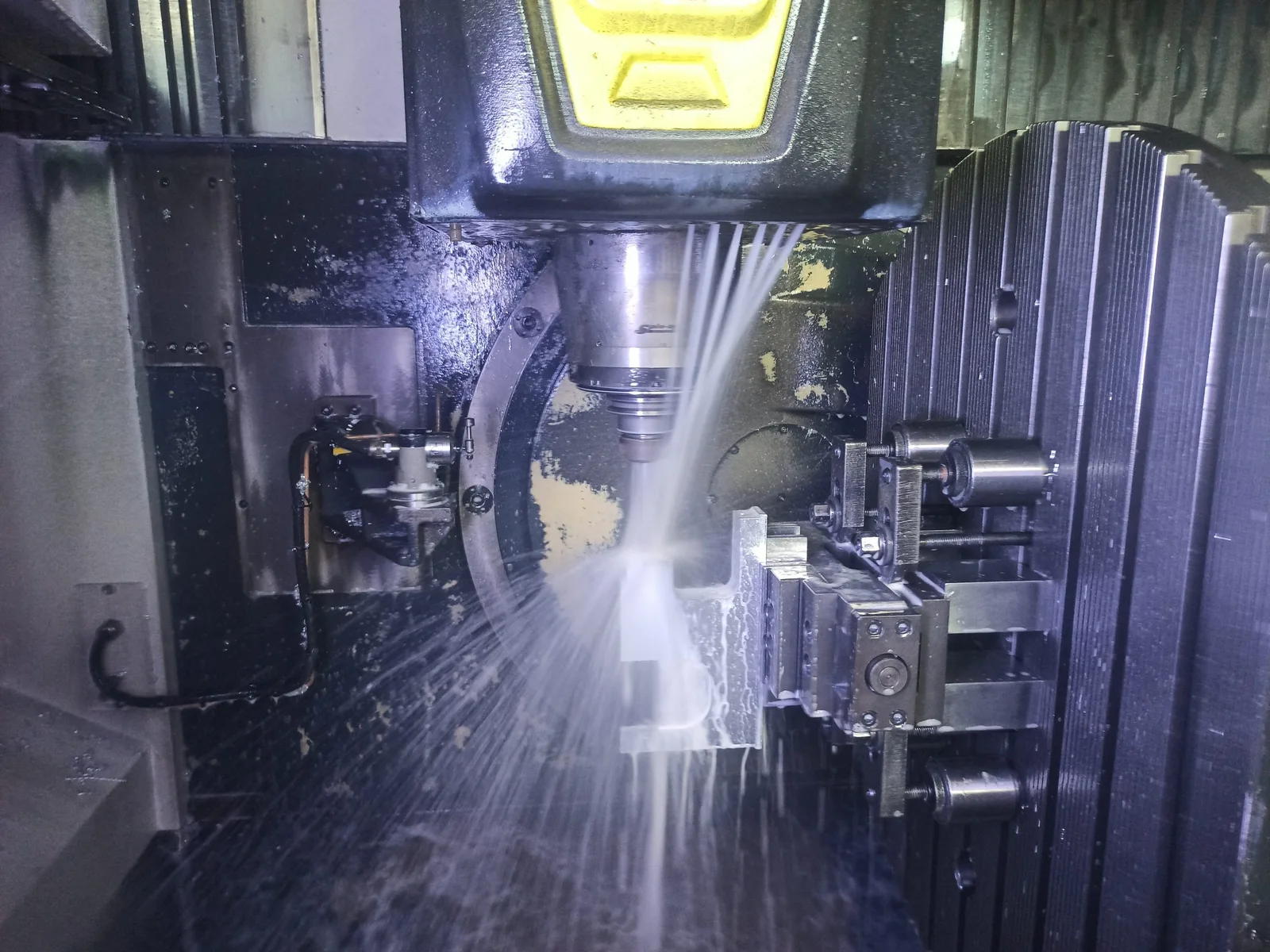

Machining Capability
Support for CNC machining projects involving complex geometry, precision features and multiple manufacturing operations.
Drawing Review
Our team reviews supplied files and identifies missing specifications or manufacturing questions before quotation.
Quality Control
Inspection requirements are evaluated according to drawing specifications and project acceptance criteria.
Drawing Privacy
Project drawings and uploaded files are used for RFQ review and controlled project communication.
What Happens After You Submit
- 01
Drawing Review
We review the supplied CAD files, drawings and project requirements.
- 02
Manufacturing Review
Our team evaluates process, material, quantity, finish and manufacturing considerations.
- 03
Quote or Clarification
You receive either a quotation or a short list of technical questions needed to complete the review.
YOUR DRAWINGS STAY PRIVATE
Private Review
Uploaded drawings and project files are used for manufacturing review and quotation.
NDA Support
If your project requires an NDA or confidentiality agreement, contact us before sharing controlled information.
Controlled Access
Project files are handled only as required for RFQ review and manufacturing communication.
RFQ Frequently Asked Questions
Upload STEP, STP, X_T, PDF, DWG or DXF. STL, IGES, IGS, SLDPRT and ZIP are also supported. The form accepts one file up to 20 MB; use a ZIP to include multiple drawings.
Yes. Send the files you have and note any open specifications in the Project Brief. We can clarify missing details during review.
Include the drawing revision and units, material, quantity, surface finish, critical tolerances, inspection requirements and target delivery needs. Identify any secondary processes or unresolved specifications.
Provide both when possible. A 3D model defines geometry; the 2D drawing should identify tolerances, threads, datums, surface finish and inspection notes. Put related files in one ZIP and identify the current revision.
NDA support is available. If your project requires a confidentiality agreement, contact us before uploading controlled information so the handling terms can be agreed first.
Ready to Review Your CNC Machining Project?
Send your drawings and manufacturing requirements for project review.
