QUALITY CONTROL FOR CNC MACHINED PARTS

CNC Machining Quality Control & Inspection

HongKe plans inspection around the approved drawing, functional datums, critical features and agreed documentation requirements. Critical dimensions and GD&T requirements are reviewed before production to define suitable inspection methods and records.

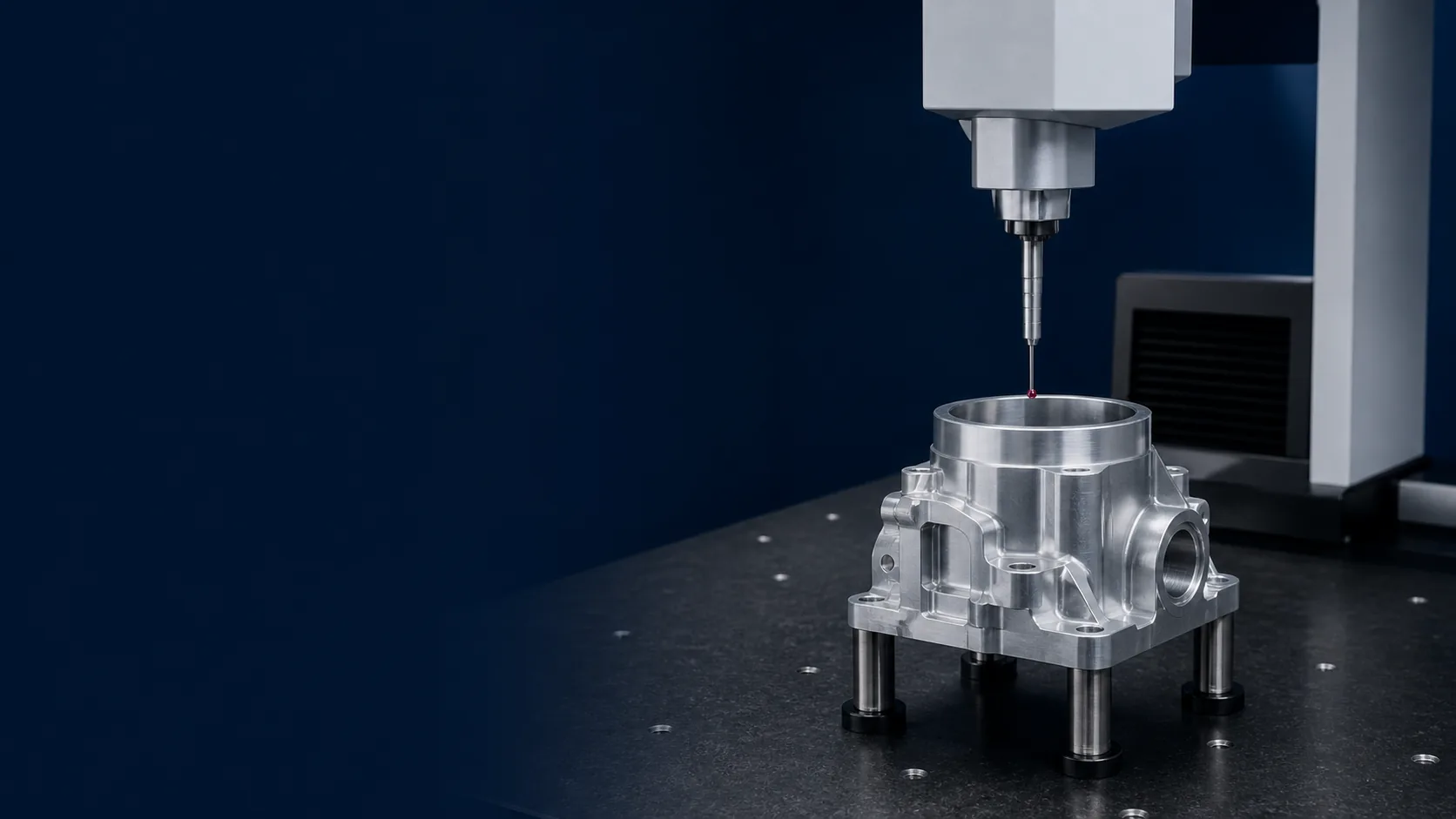

Coordinate measuring probe inspecting a machined aluminum housing
01IQCIncoming requirement and material review
02FAIFirst completed part against agreed characteristics
03IPQCSelected checks while machining is underway
04OQCFinal checks before approved release
QUALITY AT A GLANCE

Inspection Capabilities for CNC Machined Parts

Inspection methods are selected according to the approved drawing, feature type, tolerance, datum structure and required inspection evidence.

01

Dimensional Inspection

Size, diameter, depth, thickness and other specified dimensions.

02

GD&T Verification

Position, flatness, perpendicularity, profile and applicable datum-based requirements.

03

First Article Inspection

Critical characteristics verified before normal production continues.

04

In-Process Inspection

Selected features checked during machining to control process consistency.

05

CMM Inspection

Complex dimensional and geometric characteristics measured where appropriate.

06

Final Inspection

Approved requirements confirmed before shipment release.

07

Inspection Documentation

Selected inspection records provided when agreed during quotation.

08

Traceability Requirements

Traceability scope is defined at quotation based on drawing revision, material, batch and reporting requirements.

APPROVED REQUIREMENTS

Inspection Starts With Approved Requirements

Quality inspection is based on the approved drawing and agreed project requirements.

01

Drawing Revision & Notes

Approved model, drawing revision, notes and applicable specifications.

02

Critical Characteristics

Dimensions, datums, mating features and characteristics that affect function.

03

Material / Finish / Functional Requirements

Material, finish, assembly and functional inputs that affect inspection.

04

Required Inspection Evidence

Measurements, recorded results and documents required with the order.

See how drawing requirements are reviewed before quotation

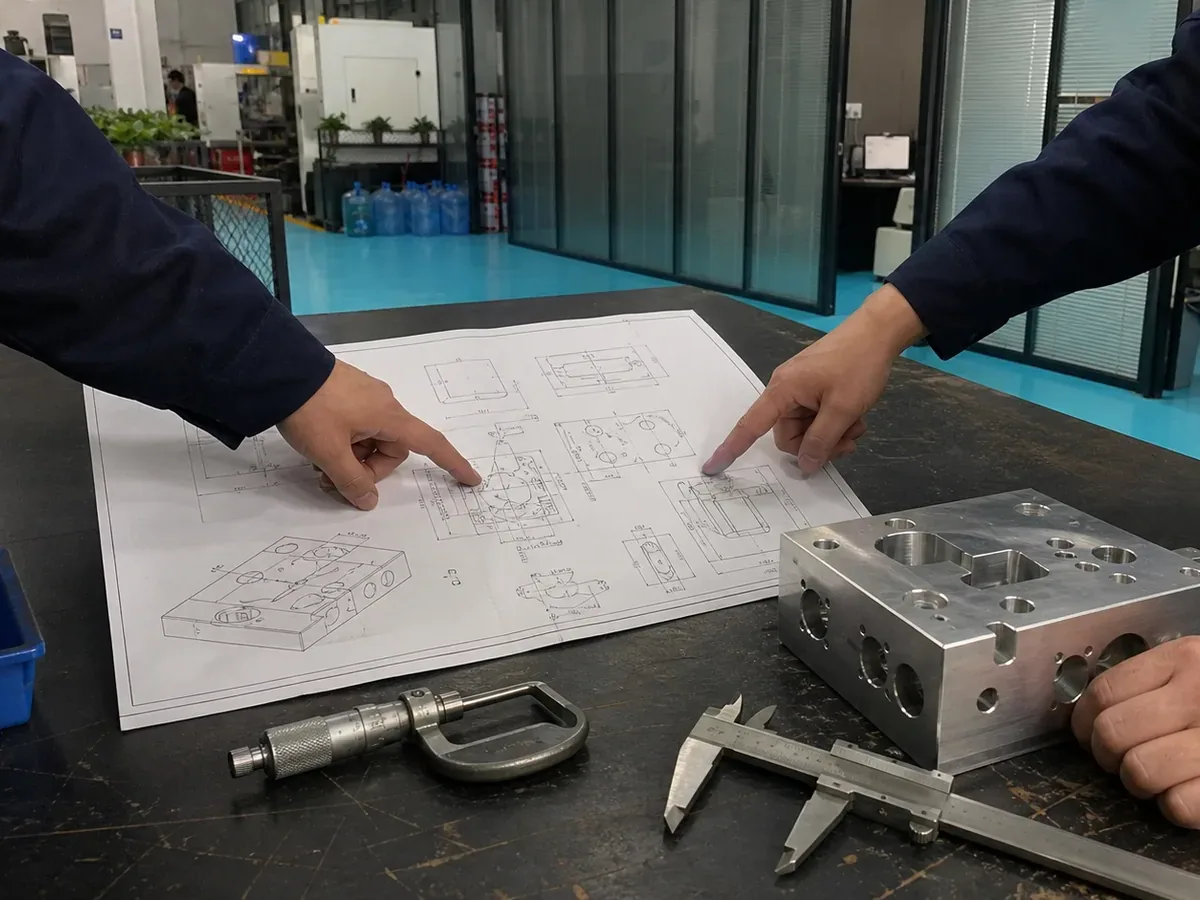

Technical drawing, machined component and inspection planning tools
BEFORE PRODUCTION

Build the Inspection Plan Around Functional Requirements

Inspection planning turns approved drawing requirements into defined checks, methods and record scope.

  1. 01

    Identify Datum Structure & Function

    Map functional datums, mating interfaces and related characteristics.

  2. 02

    Classify Critical & Routine Characteristics

    Separate critical dimensions and GD&T from routine measurements.

  3. 03

    Select Measurement Methods

    Choose equipment for the feature, tolerance and accessibility.

  4. 04

    Define Inspection Timing & Recorded Evidence

    Set FAI, in-process and final checks, sampling and recorded results.

Reviewed tolerance boundary: requirements down to ±0.005 mm apply only to reviewed critical features. Material, geometry, setup and the selected measurement method determine CNC machining feasibility.

FOUR CONTROL STAGES

Quality Control Through the Production Flow

Each stage answers a different question. Inspection equipment supports these stages but is not a separate process step.

  1. 01IQC

    Incoming Quality Control

    Review incoming material information and agreed project requirements before machining begins.

  2. 02FAI

    First Article Inspection

    Verify the first completed part against selected critical requirements before continuing production.

  3. 03IPQC

    In-Process Quality Control

    Check selected dimensions and process characteristics during machining to identify deviation early.

  4. 04OQC

    Outgoing Quality Control

    Confirm agreed final inspection requirements before parts are released for packing and shipment.

CONFIRMED INSPECTION EQUIPMENT

Inspection Equipment for Precision Machined Parts

Measurement equipment is selected according to feature type, tolerance, accessibility and the agreed inspection plan.

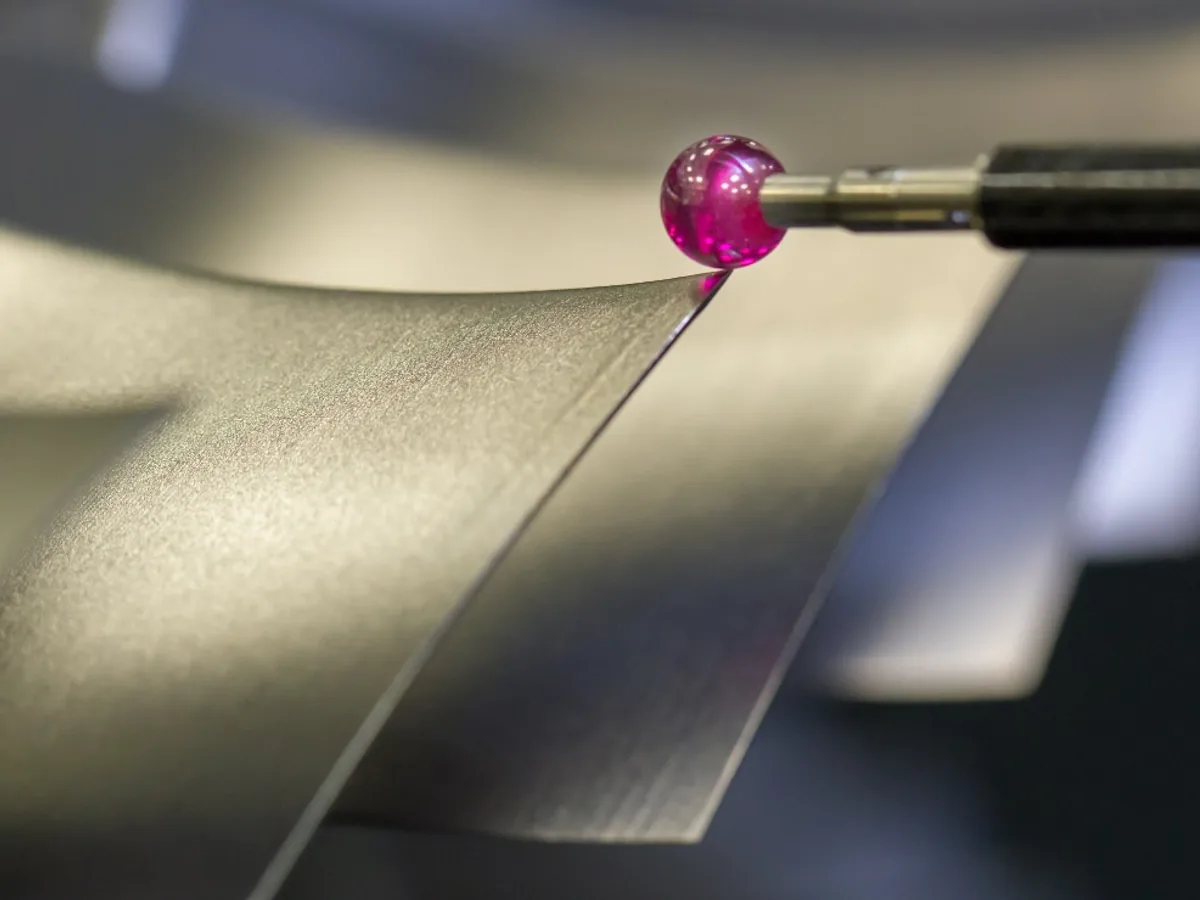

CMM touch probe contacting an accessible edge on a machined component
Complex CMM inspection

Coordinate Measuring Machine (CMM)

For complex geometry and relationships to approved datums.

  • Position & datum relationships
  • Profile & perpendicularity
  • Complex accessible geometry
REFERENCE CONFIGURATION
Bridge CMM class
Measuring range
500 × 400 × 400 mm
Resolution
0.0001 mm
E0,MPE
(1.7 + 3L/1000) μm

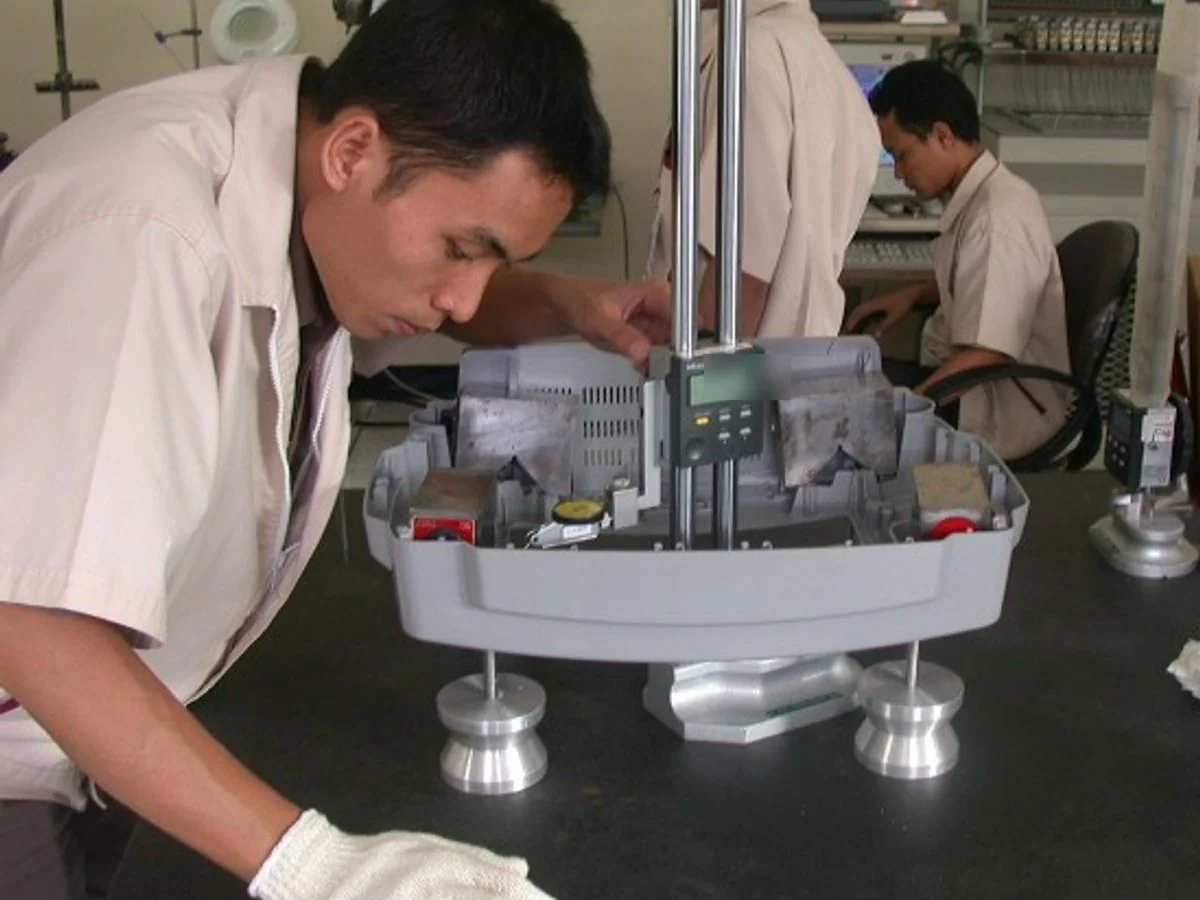

Height gauge with indicator used in a surface-plate measurement process
Surface measurement

Height Gauge

For suitable height, step and datum-related checks.

REFERENCE CONFIGURATION
Digital height gauge · 0–300 mm range · 0.01 mm resolution

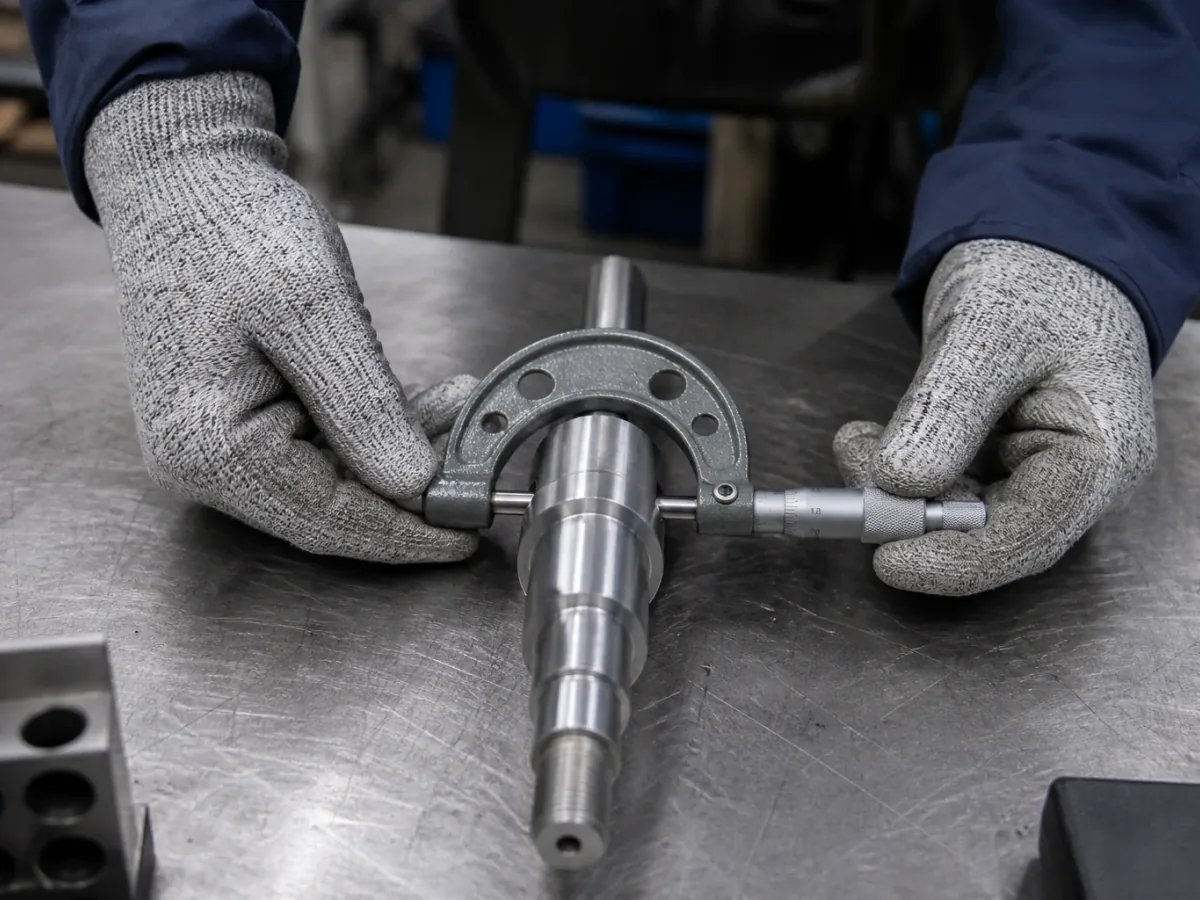

Micrometer contacting a diameter on a turned metal shaft
Contact measurement

Micrometer

For selected outside dimensions, thicknesses and accessible features.

REFERENCE CONFIGURATION
Outside micrometer · 0–25 mm range · 0.001 mm resolution

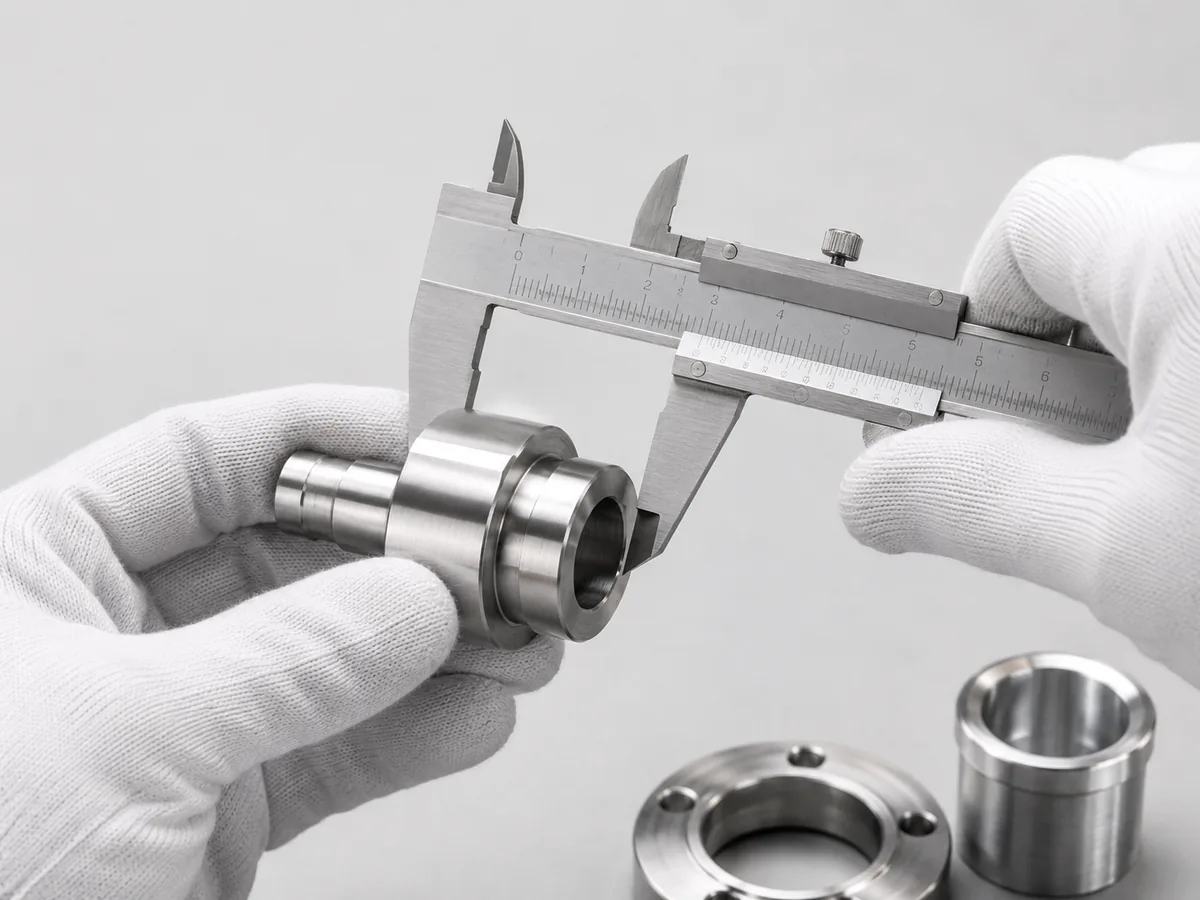

Caliper checking an accessible outside dimension on a turned component
Dimensional verification

Caliper

For general accessible dimensions with suitable tolerances.

REFERENCE CONFIGURATION
Digital caliper · 0–150 mm range · 0.01 mm resolution

Reference configuration only. Final equipment model, calibrated range and suitability are confirmed for the project.

WHAT WE INSPECT

Verify the Characteristics That Control Part Function

The approved drawing defines the critical features, datum relationships and measurement requirements for each machined part.

Review 5-axis machining capabilities
01

Linear & Diameter Dimensions

Length, width, thickness, diameter and depth.

02

Position & Datum Relationships

Hole position and features relative to approved datums.

03

Bores, Shoulders & Mating Interfaces

Critical bores, shoulders, mating surfaces and assembly relationships.

04

Profiles, Faces & Geometry

Profile, flatness, perpendicularity and geometric relationships.

05

Threads & Secondary Features

Threads, grooves, slots and secondary machined features.

06

Final Appearance & Quantity

Agreed appearance, quantity and release requirements.

INSPECTION RECORDS

Inspection Documentation Available for Your Project

Inspection records are defined during quotation according to your drawing, critical characteristics and documentation requirements.

01

Dimensional Inspection Record

Measured values for agreed critical characteristics.

02

First Article Inspection Record

Selected dimensions and features recorded before normal production continues.

03

CMM Inspection Record

Results for suitable dimensional and GD&T characteristics.

MEASUREMENT TRACEABILITY

Measurement Traceability & Calibration

Inspection equipment used for critical measurements is selected according to the approved inspection plan. Calibration status and supporting records can be confirmed where required for the project.

NONCONFORMANCE CONTROL

When a Nonconformance Is Found

A measured result outside the agreed criteria is identified and held for review before shipment. Disposition may include further review, rework, remake or another corrective action according to confirmed requirements and applicable internal procedures.

IDENTIFY→HOLD→REVIEW→CORRECT→REINSPECT→RELEASE

EXAMPLE INSPECTION PLAN

How We Would Inspect a Complex Machined Housing

Illustrative example showing how functional requirements can be translated into an inspection plan for a complex machined housing.

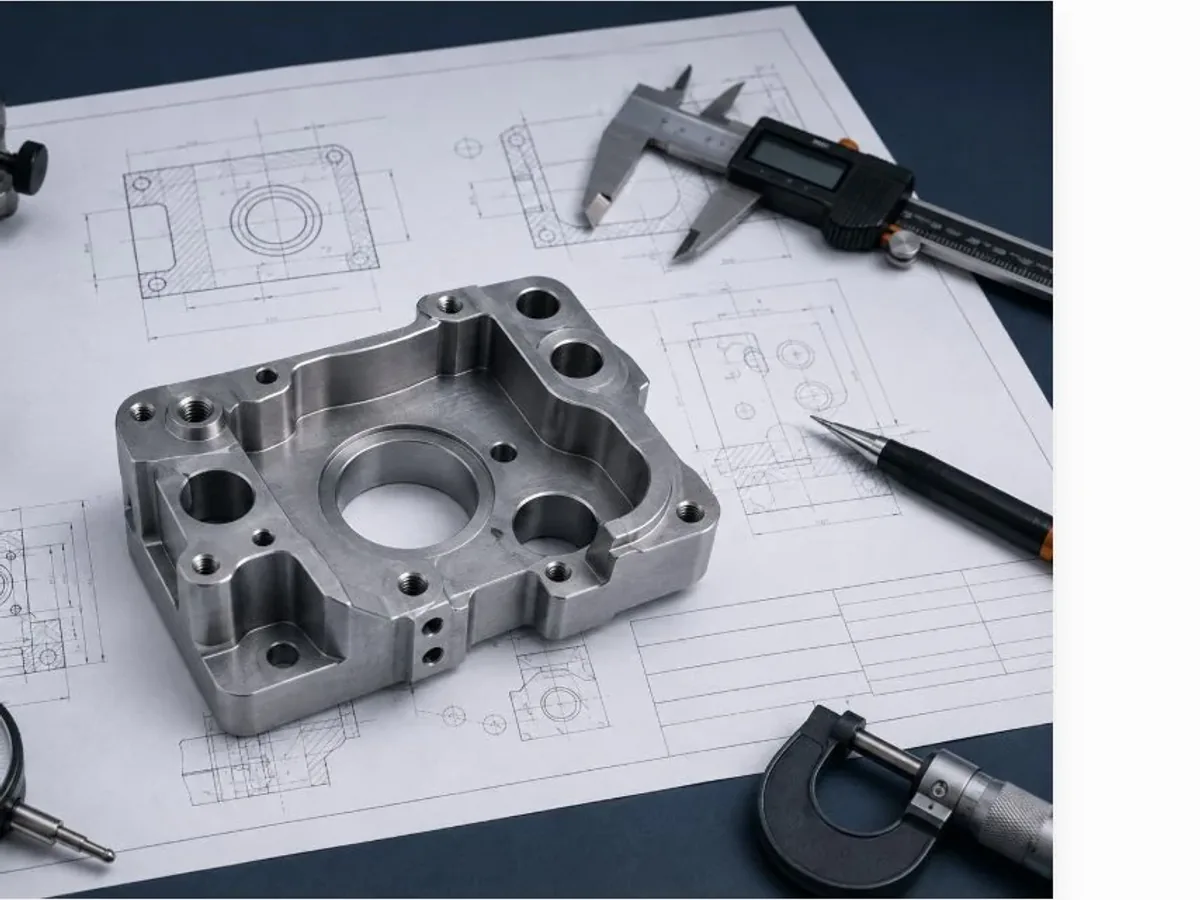

Complex machined housing beside a technical drawing and inspection tools
01

Part Requirement

Reference project: Aluminum 7075-T6 housing, 500 pcs; Ø25 H7 bore and position Ø0.10 to A / B / C.

02

Inspection Planning

Reference sampling — FAI: 1 part; IPQC: 2 parts per 50; OQC: 5-part sample.

03

Measurement Method

CMM for bore size, position and datums; contact gauges for accessible linear and outside dimensions.

04

Acceptance Criteria

Rev. C: Ø25 H7 at 25.000–25.021 mm, position within Ø0.10 and agreed records.

QUALITY CONTROL FAQ

CNC Machining Quality Control FAQs

Clarify inspection planning, equipment, reporting and release requirements before quotation.

Start an inspection review

The inspection plan starts with the approved drawing revision, functional datums, critical characteristics and required evidence. HongKe then selects suitable inspection timing and measurement methods according to feature type, tolerance, accessibility and the agreed project scope.

First Article Inspection verifies selected critical characteristics on the first completed part before normal production continues. The exact dimensions, GD&T requirements, sampling and record format are agreed for the project during quotation.

HongKe uses CMM, Height Gauge, Micrometer and Caliper for applicable inspection requirements. Equipment selection depends on feature type, tolerance, accessibility and the approved inspection plan.

HongKe can plan inspection for applicable position, flatness, perpendicularity, profile and datum-based requirements. The drawing, datum structure, feature accessibility and selected measurement method must be reviewed before the inspection approach is confirmed.

Requirements down to ±0.005 mm must be reviewed feature by feature. Feasibility depends on material, geometry, feature size, datum strategy, manufacturing process and the selected measurement method. Critical tolerances are reviewed before quotation to confirm both manufacturing and inspection feasibility.

Dimensional inspection, first article and CMM result records can be coordinated when the required characteristics, measurement method, sampling, format and release criteria are agreed during quotation.

A measured result outside the agreed acceptance criteria is identified and held for review before shipment. Disposition may include further review, rework, remake or another corrective action according to confirmed project requirements and applicable internal procedures.

Inspection equipment used for critical measurements is selected according to the approved inspection plan. Calibration status and supporting records can be confirmed where required for the project.
