Precision Machining Services for Critical-Tolerance Parts
HongKe supports precision-machined parts where critical dimensions, functional datums, fits and inspection requirements must remain controlled from drawing review through repeat production.
Datum & Feature Control
Drawing-defined relationships.
Inspection Planning
Measurement strategy before production.
Repeat Production
Controlled revisions and requirements.
PART FIT
Does Your Part Require Precision Machining?
Precision machining is relevant when a feature relationship affects how a part locates, moves, seals, aligns or assembles—not simply because every dimension is made tighter.
See what we control →Critical Fits
Bearing seats, pins and mating interfaces that must locate and function together.
Datum Relationships
Faces, bores and holes controlled from functional references on the drawing.
Tight Functional Tolerances
Narrow limits applied only where variation affects movement, sealing or alignment.
Inspection-Defined Features
Characteristics that require an agreed measurement method before production.
PRECISION ENGINEERING LOGIC

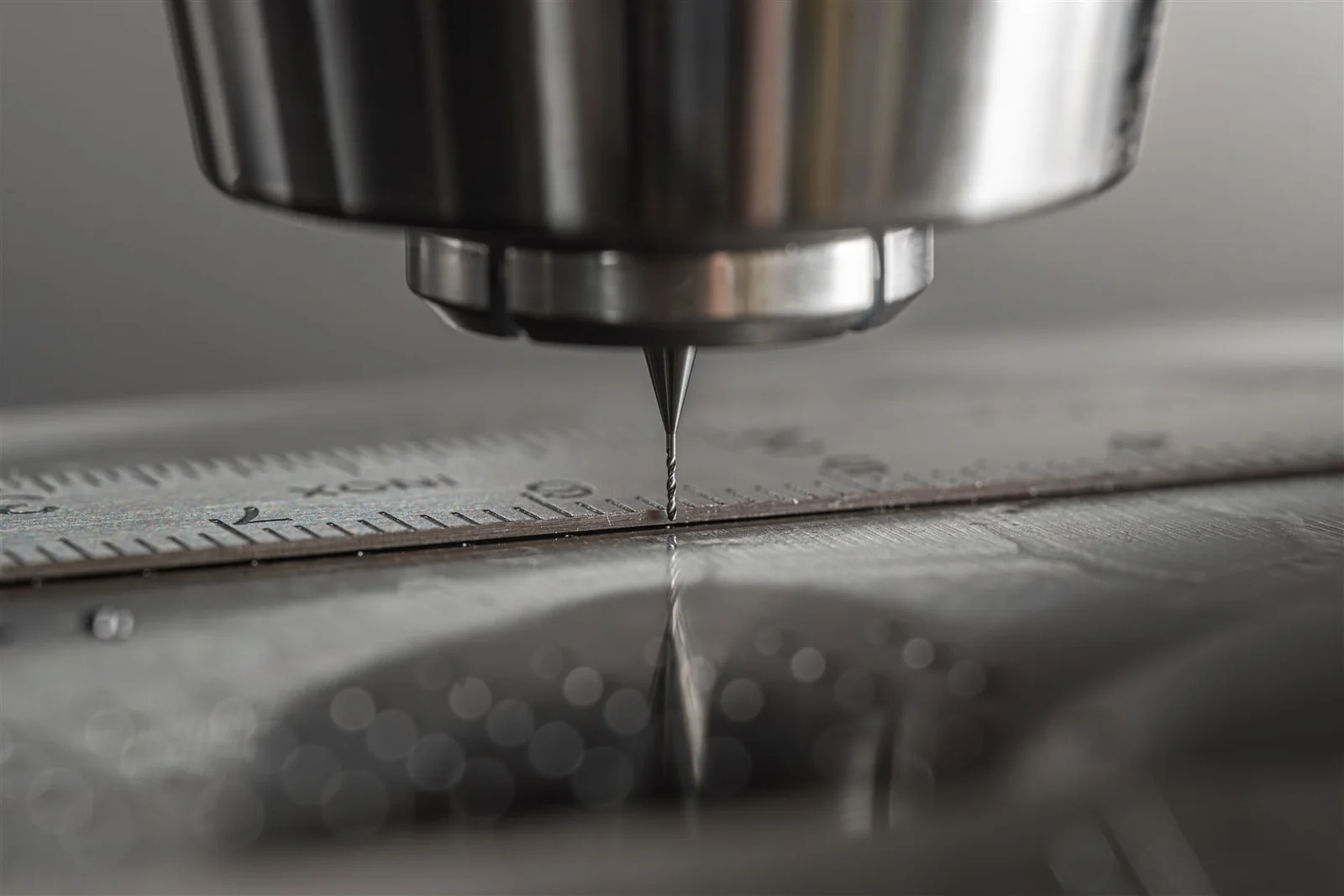

Precision Is More Than a Tight Tolerance
A tolerance is meaningful only when part function, process stability and measurement method are aligned.
- 01
Functional Datum
Define how the part works and which references control related features.
- 02
Tolerance Strategy
Apply tight limits only to functional characteristics that require them.
- 03
Process Stability
Review material condition, workholding and machining sequence.
- 04
Measurement Method
Agree how critical features will be verified before production.
PROCUREMENT VIEW
Precision Capability at a Glance
Six drawing and production facts frame the precision review before a process route is selected.
- Critical Features
- Mating bores, locating features, critical faces, related holes, shoulders and fit interfaces
- Materials
- Aluminum, stainless steel, steel, brass and engineering plastics
- Reviewed Tolerance
- Down to ±0.005 mm for reviewed critical features
- Inspection
- CMM, Height Gauge, Micrometer and Caliper
- Production Range
- Prototype, pilot quantities and repeat production
- File Formats
- DWG, DXF, STEP, STP, STL, IGES, IGS, PDF and ZIP
PRECISION PART GEOMETRIES
Precision Machined Parts

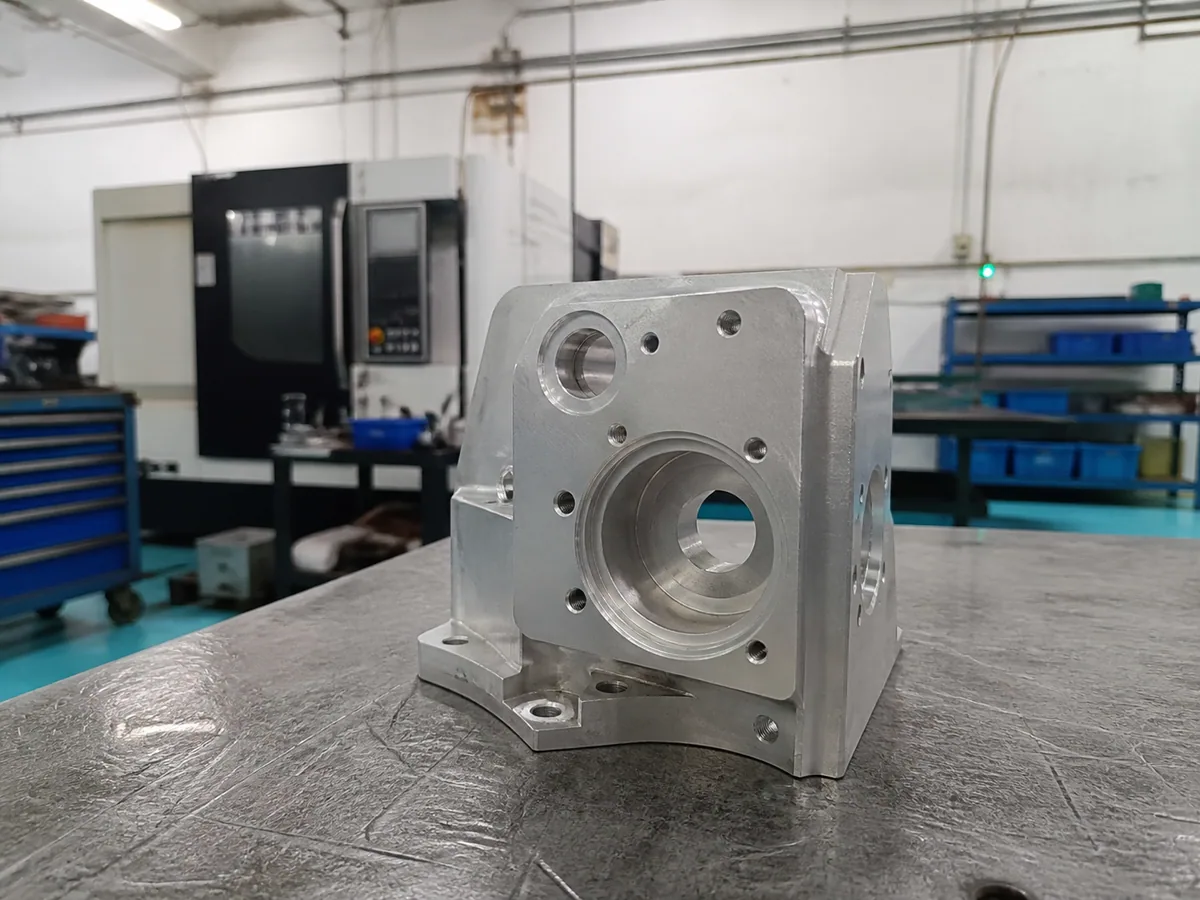

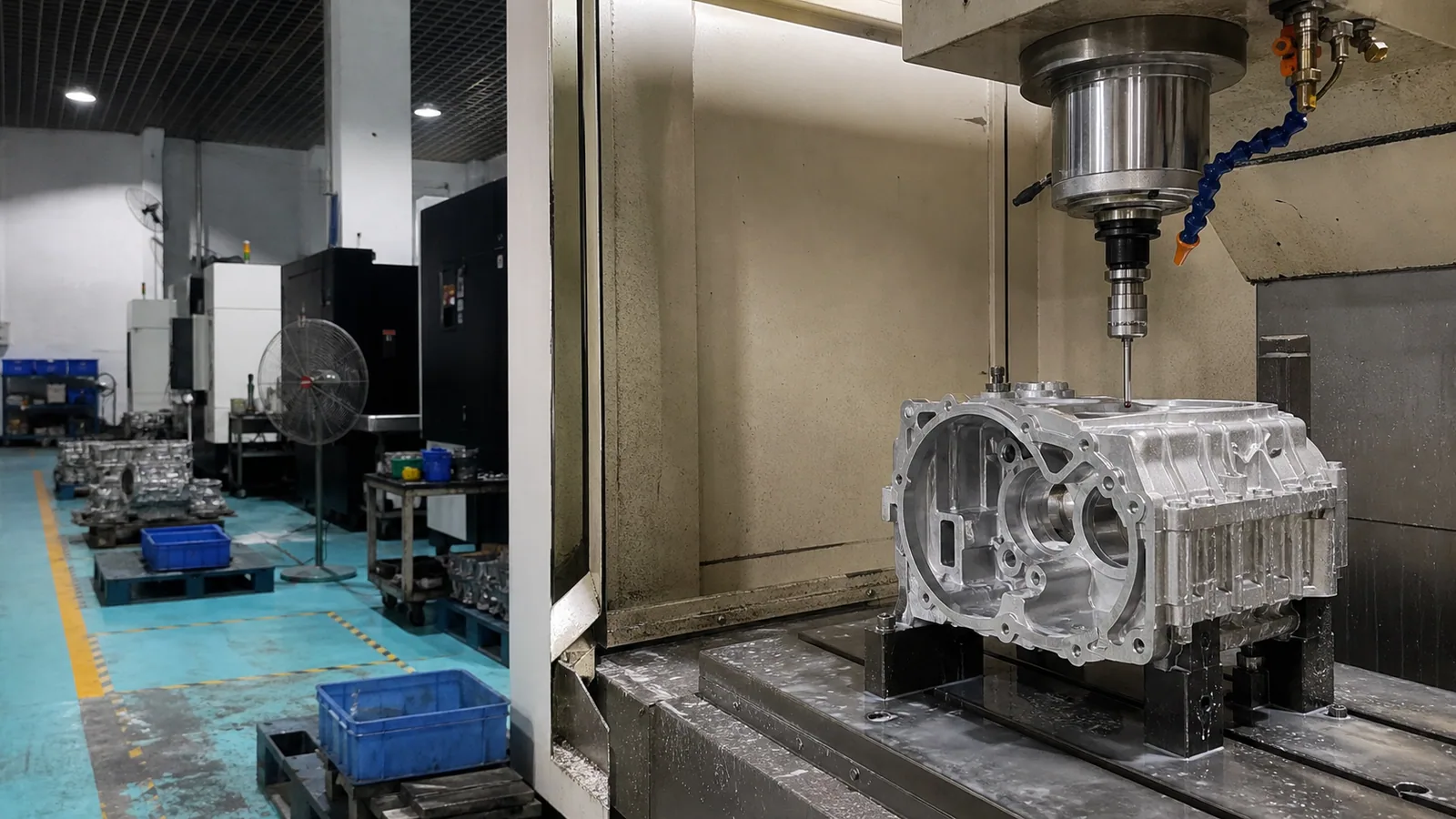

Assembly-Critical Housing
- Critical Requirement
- Bore relationships, mounting interfaces and assembly datums.
- Inspection Focus
- Related features and assembly interfaces.

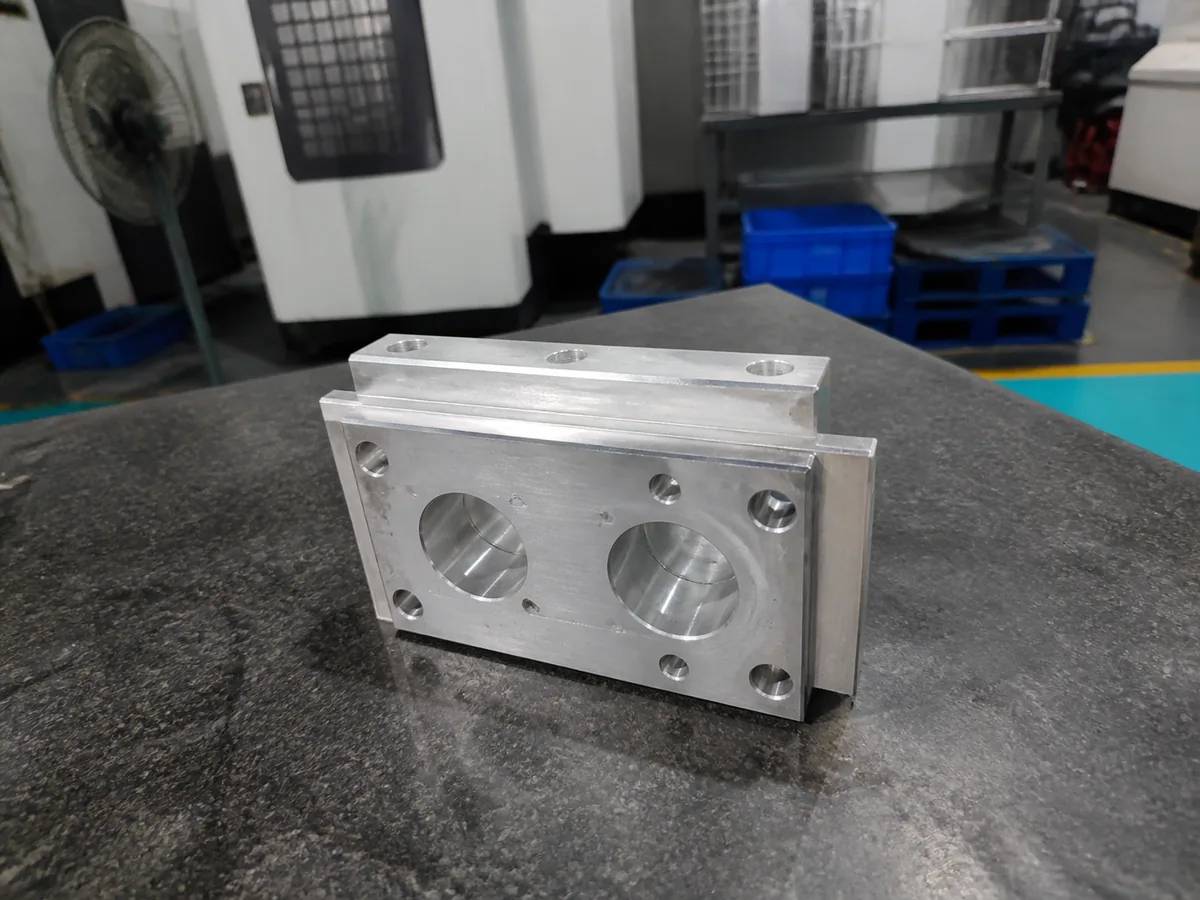

Datum-Controlled Interface Block
- Critical Requirement
- Functional datums across related bores and interfaces.
- Inspection Focus
- Datum-referenced dimensional review.

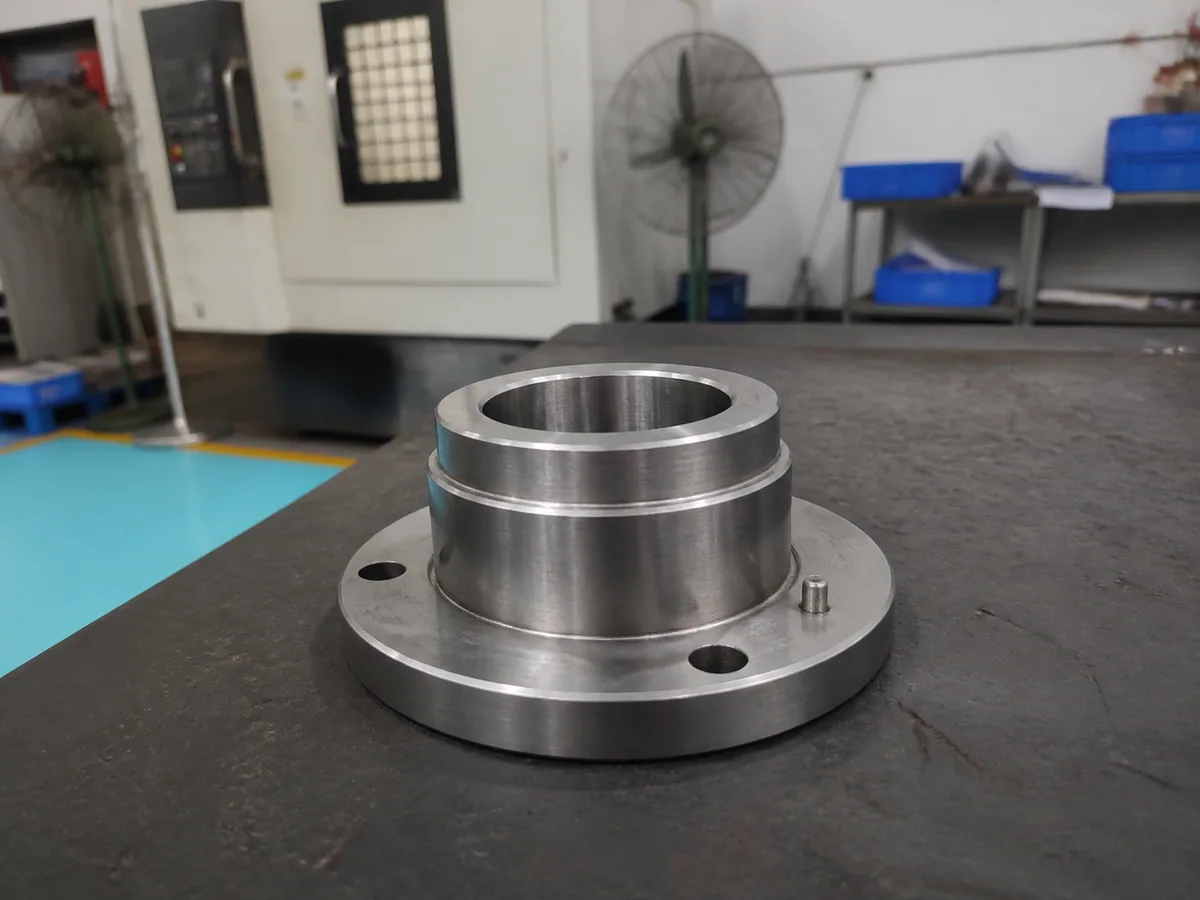

Precision Fit Component
- Critical Requirement
- Bore, shoulder and locating relationships.
- Inspection Focus
- Fit-related feature verification.
BEFORE PRODUCTION
01
02
03
04

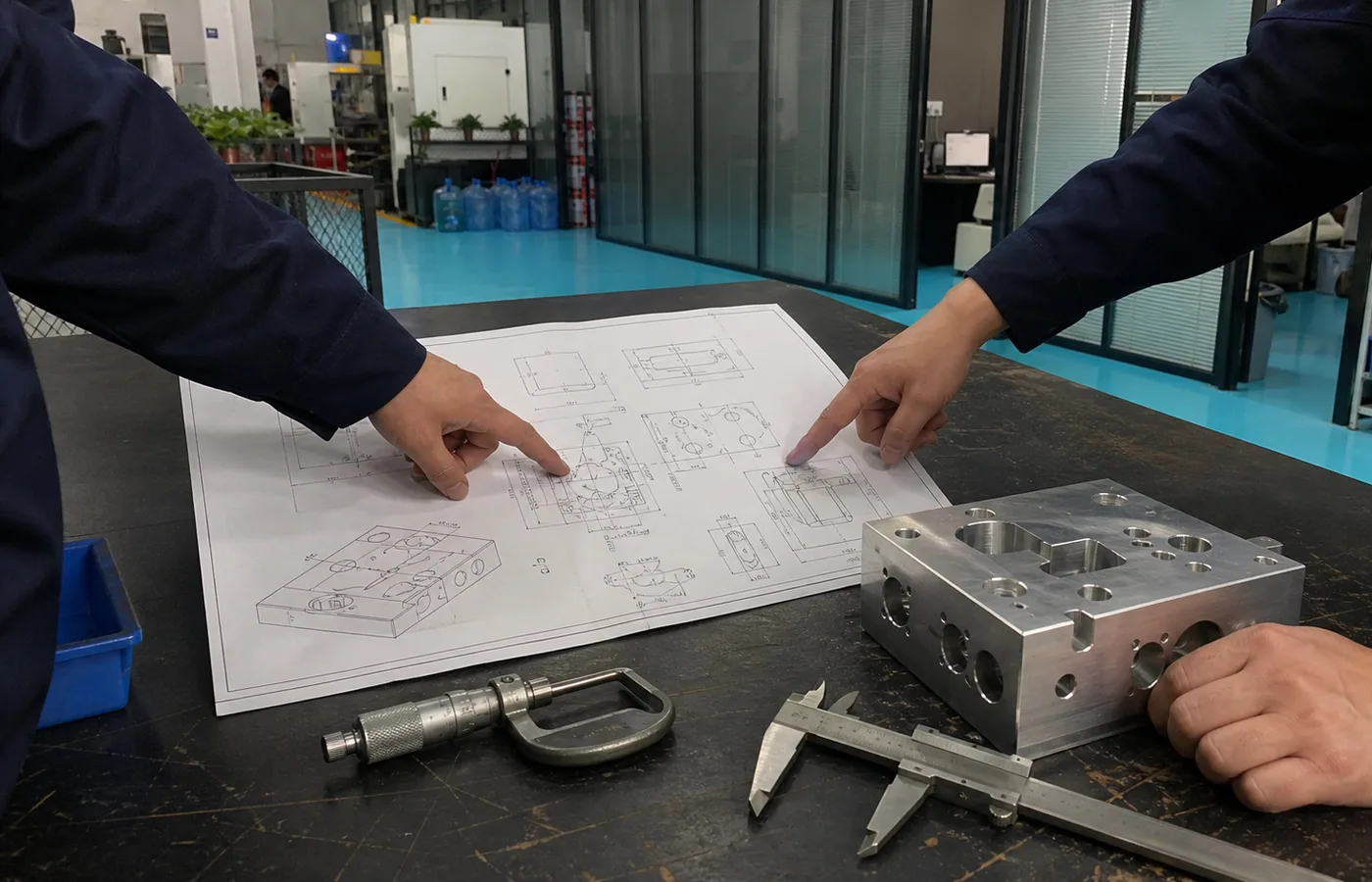

Engineering Review Before Production
Precision requirements are reviewed before process decisions are finalized so the machining route, workholding and measurement plan support the same functional intent.
Datum & Feature Strategy
Confirm primary and secondary references, critical features and assembly logic.
Tolerance Risk Review
Identify difficult, conflicting or unnecessarily tight requirements that need discussion.
Process & Workholding
Select a machining sequence and fixturing approach that protects critical relationships.
Inspection Planning
Define appropriate methods, checkpoints and requested records for critical features.
REQUIREMENT CONFIRMATION
How Precision Requirements Are Confirmed
The review starts with function and ends with an agreed verification method. This keeps a small tolerance from becoming an isolated number without manufacturing context.
- 01
Function
Why does this dimension or relationship matter to the part?
- 02
Datum
Which functional reference controls the feature?
- 03
Tolerance
How tight does the functional requirement need to be?
- 04
Process
Which manufacturing route can hold the relationship consistently?
- 05
Inspection
How will the critical characteristic be verified and recorded?
MEASUREMENT & EVIDENCE
How Critical Features Are Verified
The method is selected from the drawing requirement and feature relationship.

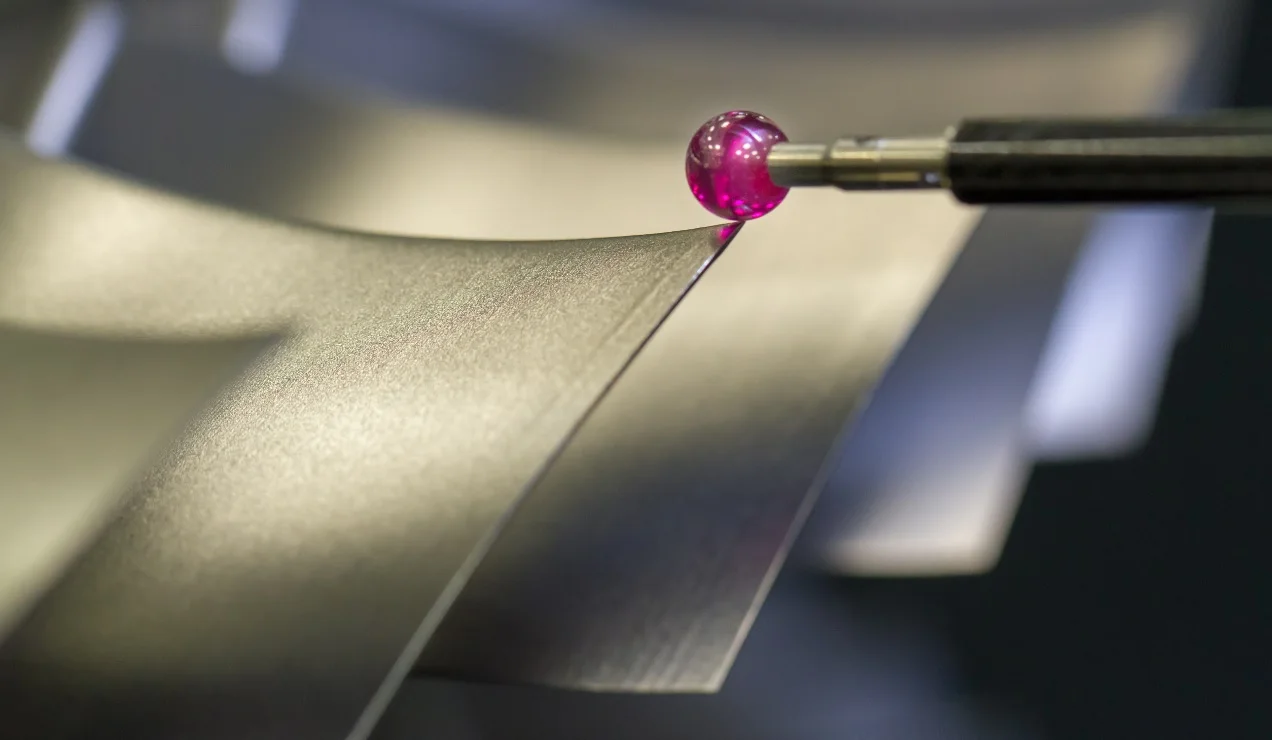

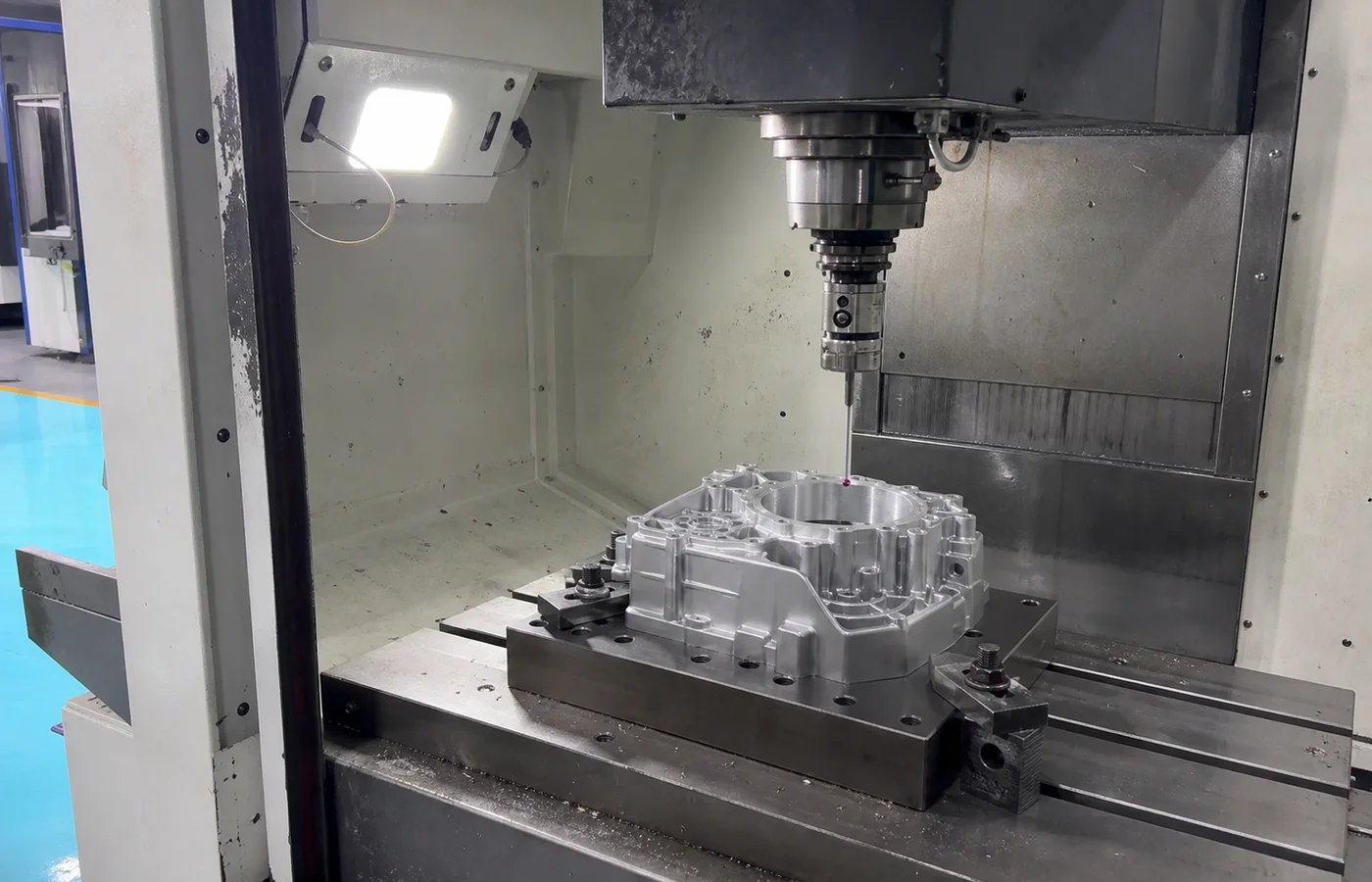

CMM / Coordinate Measurement
Supports related-feature, position and geometry checks where appropriate.
Diameter & Bore Measurement
Diameter and bore relationships are matched to a suitable confirmed method.
Height / Position / Geometry
Height Gauge and CMM support suitable datum-related characteristics.
Inspection Records
Required report scope and critical characteristics are agreed before production.
REPEATABILITY FOR REPEAT ORDERS
Built for Repeat Orders
Precision matters again on the second order—not only the first accepted part.
Approved Drawing
Use the approved revision and identify changes before production.
Process Notes
Retain agreed process, workholding and feature-specific instructions.
Inspection Plan
Apply the agreed checks to the same critical requirements.

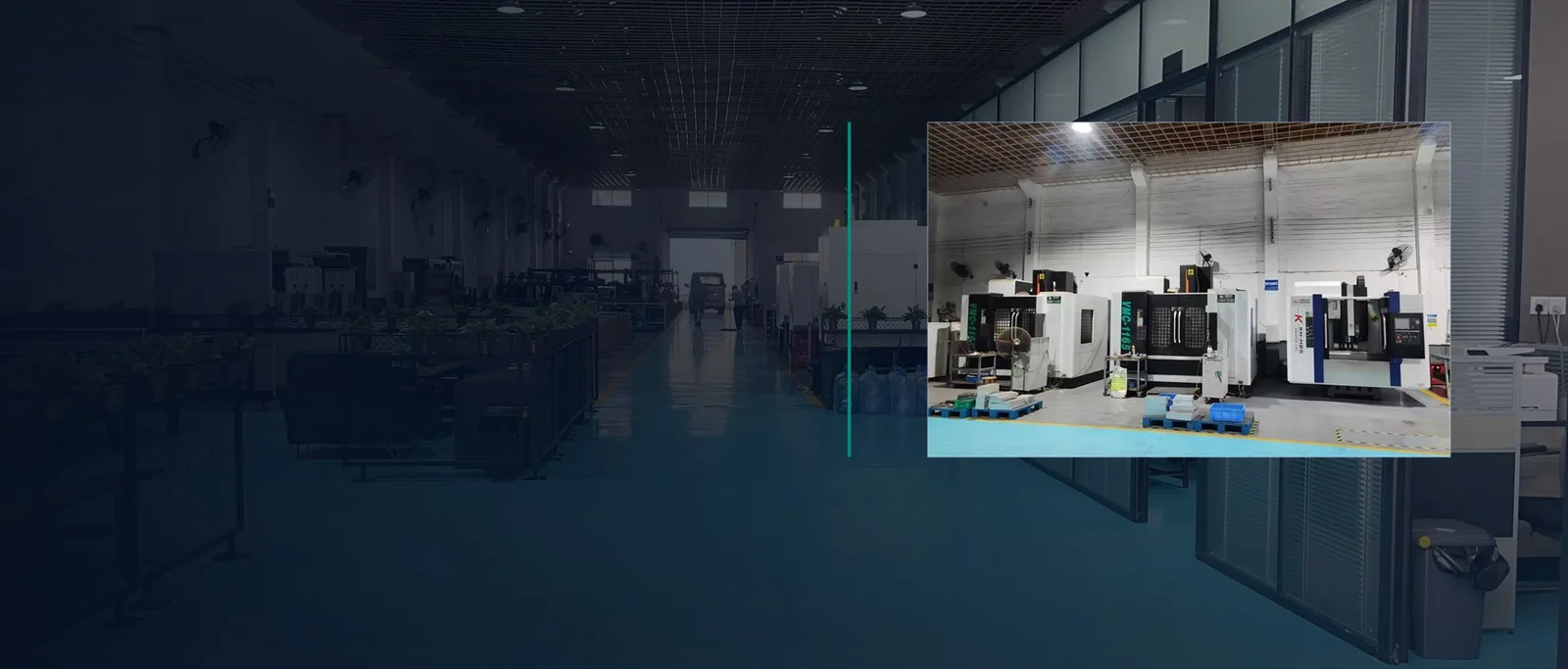

Repeat Production
Review the next order against approved functional requirements.
DRAWING GUIDANCE
Precision Machining Design Guidance
Clear functional requirements make drawing review, process planning and quotation more useful.
Critical Dimensions
Mark the dimensions and relationships that control fit, motion, sealing or assembly.
Datum Strategy
Define primary, secondary and tertiary references from how the part functions.
Tolerance Strategy
Use realistic general tolerances and reserve tighter limits for functional features.
Inspection Planning
State required methods, critical characteristics and report expectations before production.
TECHNICAL CONTENT
Precision Machining Resources
Planned page-specific guides; no fabricated URLs are used before publication.
Precision Machining Tolerance Guide
Fits & Mating Features Guide
Datum Strategy for Machined Parts
PRECISION MACHINING FAQ
Precision Machining FAQs
Answers focus on defining, manufacturing, measuring and repeating critical requirements.
Upload Your DrawingWhat does precision machining mean at HongKe?
At HongKe, precision machining means reviewing how a part functions before deciding how critical dimensions, datums, fits, process controls and inspection methods should be handled.
What tolerances can HongKe review?
HongKe can review critical features down to plus or minus 0.005 millimetres. Achievability depends on the material, geometry, feature size, datum scheme, workholding, process route and inspection method.
Which dimensions should be marked as critical?
Mark dimensions that control fit, motion, sealing, alignment, assembly location or another functional result. Separating critical features from general dimensions helps focus process and inspection effort where it matters.
How do datum relationships affect machining?
Functional datums establish the references used to locate related faces, bores and holes. Clear primary and secondary references help align workholding, machining sequence and inspection setup.
Can inspection reports be provided?
Inspection reporting requirements can be reviewed before quotation. The drawing should identify critical characteristics and any required report scope so the measurement plan can be agreed before production.
How does HongKe support repeat orders?
Repeat orders are reviewed against the approved drawing revision, agreed critical requirements, retained process notes and the applicable inspection plan so changes can be identified before production.
What information is needed for a precision machining quote?
Provide the 2D drawing and available 3D model, material, quantity, critical dimensions, datum references, fit requirements, surface requirements and requested inspection records. Unclear requirements can be discussed during drawing review.
PRECISION DRAWING REVIEW
Upload Your Drawing for Precision Review
Send your drawing and project requirements. We review critical dimensions, functional datums, tolerance requirements and inspection needs before quotation.
What Happens After You Upload?
- 1
Drawing Review
We review critical dimensions, datums and functional relationships.
- 2
Precision & Inspection Review
We assess tolerance requirements, process risks and measurement needs.
- 3
Quotation Feedback
You receive quotation feedback and any technical questions requiring confirmation.
