STEP file vs 2D drawing conflicts should be resolved through the controlled product definition, not by assuming one format always wins. A model may communicate nominal geometry while a drawing adds tolerances, datums, material, finish, and acceptance notes. If the two disagree, the supplier needs a documented interpretation from the authorized owner before making the affected feature. This article explains how procurement and engineering can identify the conflict, issue a clear correction, and preserve the decision through machining and inspection. It focuses on conflicting requirements rather than repeating a general checklist for creating a drawing.
STEP file vs 2D drawing: which one controls?
The agreed release package and its stated precedence rules control. There is no safe universal rule that every STEP model overrides every drawing, or that every drawing overrides all model information. The project must identify the authoritative definition and how exceptions are resolved.
A drawing may state that the model defines undimensioned geometry while the drawing defines tolerances and notes. Another controlled workflow may use an approved model-based definition with associated information. The supplier must know which arrangement applies and must have access to the required data in a usable form.
When the package has no precedence statement, do not invent one to keep production moving. Identify the exact discrepancy and request clarification. The 2D drawing preparation guide explains the information a drawing should communicate. This article addresses what to do when the released files communicate different answers.
Distinguish a real conflict from complementary information
Not every difference is a contradiction. A model can show nominal geometry while a drawing supplies a tolerance or surface requirement that has no obvious visual representation. The issue becomes a conflict when the files imply incompatible geometry, material, condition, or acceptance.

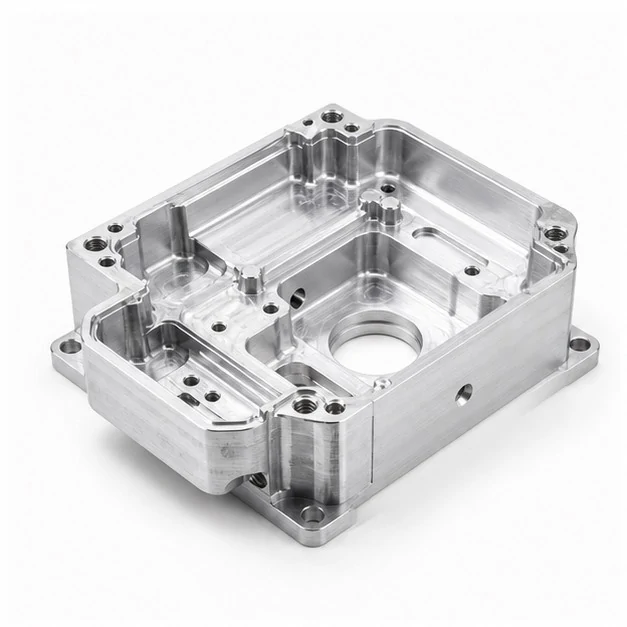

For example, a drawing may specify a threaded hole while a simplified model shows a plain cylindrical opening. That may be an intentional representation if the thread designation and required dimensions are clear. A drawing calling for one hole location while the model places its axis elsewhere is a different matter and requires resolution.
Ask the supplier to describe the contradiction rather than merely reporting that the files do not match. Identify the affected feature, the value or condition in each source, and the consequence for machining or inspection. This makes it possible for the owner to answer the actual question without conducting an unnecessary review of every unrelated feature.
| Situation | Likely interpretation | Required action |
|---|---|---|
| Model shows nominal bore; drawing adds a limit | Complementary definition may be intended | Confirm the release package's interpretation rules |
| Model and drawing place a hole differently | Conflicting nominal geometry | Obtain a controlled correction |
| Model has a plain opening; drawing defines a thread | Simplified geometry may be intentional | Confirm thread system, size, and usable depth |
| Drawing and order name different material conditions | Conflicting supply requirement | Resolve before stock commitment |
| Finish note lacks affected surfaces | Incomplete requirement | Define treatment and protection boundaries |
Identify the exact files before discussing dimensions
Confirm part number, revision, file name, and release date or identifier for every supplied document. A correct answer applied to the wrong revision does not resolve the order. Keep the original package available so the review can be traced to what the supplier received.
Avoid relying on file names such as final, latest, or updated without a controlled revision. A model and drawing can both appear current while belonging to different changes. If the buyer sends a revised model during a call, issue a package index identifying which earlier file it replaces and which files remain valid.
The package index can be simple: one line for each document with its identifier, revision, purpose, and status. Link the quotation and purchase order to that index. The value comes from consistency, not the sophistication of the document-management software used to create it.
Check units, orientation, and configuration early
Confirm the units and intended component configuration before interpreting a dimensional mismatch. A scaled import, the wrong assembly member, or an obsolete configuration can look like a feature-level discrepancy. Resolve those foundational issues before asking the supplier to evaluate machining consequences.
Use a recognizable overall dimension and several functional features to confirm the imported model. Check that the model represents the finished part rather than raw stock, an intermediate machining state, or an assembly envelope. If left-hand and right-hand variants exist, identify which one is being purchased.
Do not correct an apparent unit or orientation problem by silently scaling or mirroring the production model. Record the finding and obtain the intended file or explicit instruction. A transformation that fixes one visible dimension may leave handedness, datums, or other relationships wrong.
Write a clarification that leads to one decision
A useful clarification contains the feature reference, the two conflicting requirements, the manufacturing consequence, and the decision needed. It should be possible for the owner to answer without guessing which file or surface is being discussed.
For example, describe a locating bore whose axis differs between the released model and the drawing's datum-based location. State that toolpath preparation for the affected feature is pending clarification. Ask whether a corrected model or revised drawing will be issued. Do not invent an acceptable offset or choose whichever source is easier to program.
Attach a marked view when needed, but keep annotations clearly separate from the controlled drawing. A screenshot can explain a question; it should not become the only permanent record of a design change. Once resolved, update the relevant controlled document or issue an authorized clarification with an unambiguous scope.
Preserve the decision through CAM and inspection
The resolved requirement must reach everyone who uses the part definition. Updating a quotation note is insufficient if the programmer still imports the old model or inspection prepares its program from a different drawing. Identify the superseded files and verify the active package at each handoff.
For a location change, consider whether workholding, stock allowance, tool access, or measurement setup also changes. A small geometric edit can affect more than one operation. The supplier should review the consequences before treating the correction as a simple file replacement.
The quality control overview explains why acceptance needs a clear characteristic and reference condition. In a conflict-resolution workflow, the inspection plan should reference the same released requirement as machining. Otherwise, a conforming part according to one file may be rejected according to another.

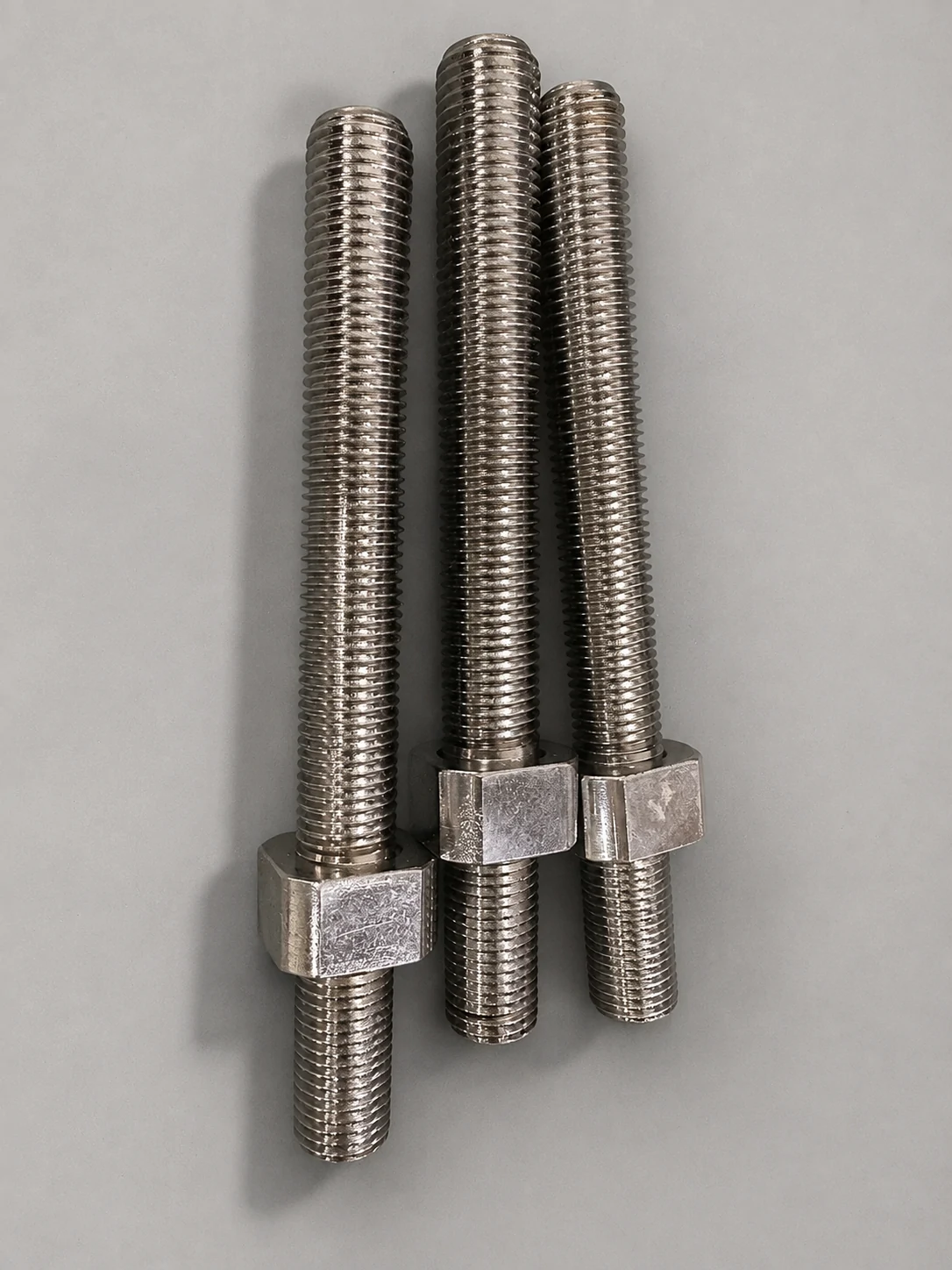

Handle threads and finish notes without guesswork
Threads and finishes often expose the limits of geometry-only communication. The visible shape may not communicate the required thread designation, engagement, fit, masking, or final acceptance condition. Those details need a controlled definition even when there is no visual mismatch.
The thread design guide provides a framework for specifying the usable thread requirement. During conflict review, distinguish the drilled preparation from the finished thread and identify any mismatch in depth or access. Do not assume a model's cylindrical depth defines the usable threaded length.
For finish, determine which surfaces are treated and whether critical dimensions apply afterward. A quotation based on an untreated bore is not equivalent to an order requiring the same bore after coating. Record the boundary and inspection condition rather than relying on a general appearance image to define a functional treatment.
Resolve changes after machining has started
When a conflict is discovered during production, first identify the affected work and quantity. The response may differ for uncut stock, partially machined components, finished parts, and parts already sent for treatment. Avoid treating all inventory as if it were in the same condition.
Ask the supplier to state what has been completed and which operations depend on the unresolved requirement. The authorized owner can then decide whether to correct the definition, accept a bounded deviation, rework, or replace the affected parts. Each option needs a documented scope and acceptance basis.
A one-time deviation should identify the part revision, affected characteristic, quantity or batch, and approval. It should not quietly become a permanent design change. If the intended design is changing for future orders, update the controlled package separately and clarify when the new revision takes effect.
Compare revised prices against the same corrected package
A resolved conflict can change cost or delivery because it changes material, tool access, workholding, finishing, or inspection. Ask for the consequence explicitly and compare revised offers against the same corrected definition. Do not compare one supplier's old interpretation with another supplier's clarified route.
Separate work already authorized from work caused by the revision. The commercial treatment depends on the agreement and actual status, so avoid assuming that every correction is free or that every clarification justifies a new charge. Request a specific explanation of the affected activity.
Keep the accepted technical answer attached to the revised quotation or order reference. A price update that omits the corrected requirement can reopen the original ambiguity. Close both the engineering definition and the commercial consequence before releasing the dependent operation.
Prevent the next conflict with a release gate
Before sending the RFQ, check that the model and drawing belong to the same revision, describe the same finished configuration, and use compatible units. Verify the critical interfaces and recent changes first. A focused release check can catch a stale export without requiring a complete redesign review.
State how undimensioned geometry, tolerances, notes, and precedence are defined. Remove superseded files from the active package while retaining them in controlled history. If multiple variants are quoted, give each a clear part identifier and quantity instead of relying on a supplier to infer the intended configuration.
For complex relationships, use the tolerances guide to review the connection between nominal geometry and acceptance. A coherent package does more than eliminate contradictions: it makes clear what the part must do and how the supplier will demonstrate that it meets the agreed requirements.
Frequently asked questions
Should a supplier always follow the 2D drawing?
Only according to the agreed product-definition and precedence rules. If the drawing and model conflict and the controlling requirement is unclear, the supplier should request a documented decision rather than apply an assumed universal rule.
Can an email resolve a drawing conflict?
An authorized written clarification can record a decision if the project's controls allow it and its scope is clear. For continuing production, update the controlled package as required so the answer is not separated from the files used by programming and inspection.
Is a missing modeled thread automatically an error?
No. Threads can be represented in simplified geometry while their full requirement is defined elsewhere. Confirm the designation, usable engagement, preparation, and acceptance information. A simplified representation must not leave the finished requirement ambiguous.
Can production continue while one feature is unresolved?
Only for work whose authorization and independence are clear under the project agreement. Identify the affected operations and inventory first. Do not assume that an apparently unrelated operation is safe if the unresolved change could alter stock, datum selection, or workholding.
Release one coherent definition
The objective is a controlled package that machining, purchasing, and inspection interpret consistently. For an initial review, send HongKe CNC the model, drawing, and known discrepancies with part revisions and critical interfaces so questions can be identified before the affected work is committed.
