Introduction

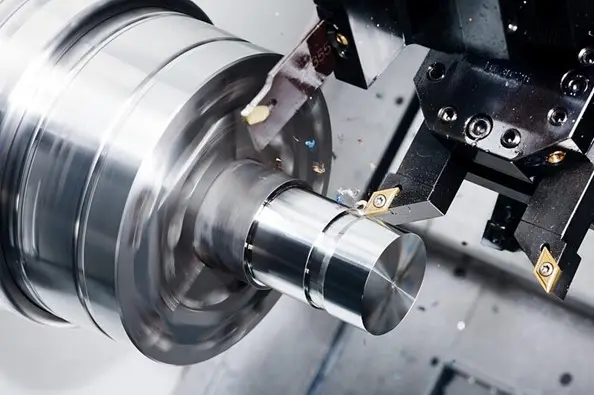

When you design a part for CNC machining, small changes in geometry can significantly affect manufacturing cost, lead time, and quality. Design for Manufacturability (DFM) is the process of optimizing your design to suit the CNC machining process without compromising functional requirements. This guide explains the most common DFM rules for CNC milling and turning, helping engineers and procurement professionals avoid expensive rework and production delays.
1. Avoid Unnecessarily Tight Tolerances
Every additional decimal place on a tolerance increases inspection time, setup care, and scrap risk. A general CNC machining tolerance of ±0.1mm (or ±0.005 inches) is achievable for most features without extra cost. Only apply tighter tolerances (e.g., ±0.025mm) to mating surfaces or critical dimensions. Ask yourself: does this surface really need ±0.01mm? If not, leave it open to standard tolerances.
2. Ensure Adequate Wall Thickness
Thin walls (less than 0.8mm for metals, 1.5mm for plastics) can vibrate during cutting, causing poor surface finish and dimensional errors. For aluminum, a minimum wall thickness of 1mm is recommended; for stainless steel, at least 1.5mm. If thin walls are unavoidable, consider using thicker stock and machining away material only where necessary, or design stiffening ribs.
3. Design Appropriate Internal Corner Radii
Internal corners should have a radius equal to or slightly larger than the tool radius. Sharp internal corners (90°) cannot be fully machined with a round end mill—they will result in a small fillet or require an EDM operation. A practical rule: use a radius of at least 1–1.5mm for most milling operations. This allows standard tools to achieve a clean corner without excessive tool wear.
4. Avoid Deep Pockets and Deep Holes
Deep pockets (depth-to-diameter ratio > 3:1) require longer tools, which are more prone to deflection, chatter, and poor surface finish. For holes, a depth-to-diameter ratio exceeding 5:1 is considered deep hole drilling and may require special pecking cycles or gun drilling. Where possible, design pockets with depth less than 3 times the tool diameter, and use through holes or stepped depths.
5. Optimize Thread Design
Threads can be cut with taps, thread mills, or single-point threading. For tapped holes, ensure adequate thread depth (1.5–2 times the nominal diameter for blind holes) to avoid tap breakage. Avoid thread sizes smaller than M2 (or #2-56) unless absolutely necessary, as they are fragile and difficult to inspect. For large threads, consider using thread inserts (helicoils) after machining.
6. Minimize Number of Setups
Each additional setup (flipping the part) adds time, tolerance stack-up, and fixturing cost. When designing, try to put all machined features on as few faces as possible. For prismatic parts, 3-axis machining with one setup is ideal. If 5-axis machining is available, complex geometry can be completed in one setup, reducing lead time and improving accuracy.
7. Select Materials with Good Machinability
Material choice directly affects machining speed, tool life, and surface finish. Aluminum 6061, brass C360, and steel 12L14 are excellent for CNC machining. Stainless steel 303 is easier to machine than 304 or 316. Engineering plastics like Delrin (POM) and Nylon are also machinable but require sharp tools and proper coolant. For cost-sensitive parts, standard commercial alloys are preferred over aerospace-grade materials.
8. Provide Clear Drawing and GD&T
A well-defined 2D drawing with GD&T symbols (flatness, parallelism, true position) removes ambiguity. Indicate critical features with datum references and specify surface roughness (Ra 1.6 μm is typical for general surfaces; Ra 0.8 μm for sealing faces). Avoid over-dimensioning; only mark dimensions that are functionally necessary. A complete 3D model (STEP or IGES) plus a PDF drawing is the industry standard for accurate quoting.
9. Consider Part Orientation and Workholding
During design, think about how the part will be held on the machine. Features like vises, soft jaws, or custom fixtures require clamping surfaces. Avoid thin sections near clamp areas that may deform. Leave enough material for clamping (e.g., at least 3–5mm of solid material). If the part is too small or irregular, consider adding machining tabs or a larger initial block.
10. Allow for Stock Material Sizes
Standard raw materials come in specific sizes (e.g., aluminum plate 1/4", 1/2", etc.; bar diameters in 1/8" increments). Design part dimensions that match standard stock sizes to avoid unnecessary material removal or custom ordering. For turned parts, choose diameters close to standard bar diameters to reduce roughing passes.
Conclusion (Practical Advice)
Applying these DFM principles early in the design phase can reduce CNC machining costs by 20–30% and shorten lead times significantly. Review your part with a manufacturing engineer before sending it for quotation. Even minor adjustments to radii, depths, or tolerances can avoid tool change slowdowns and improve overall quality. For complex assemblies, consult with an experienced CNC machining service provider to validate your design before production.
